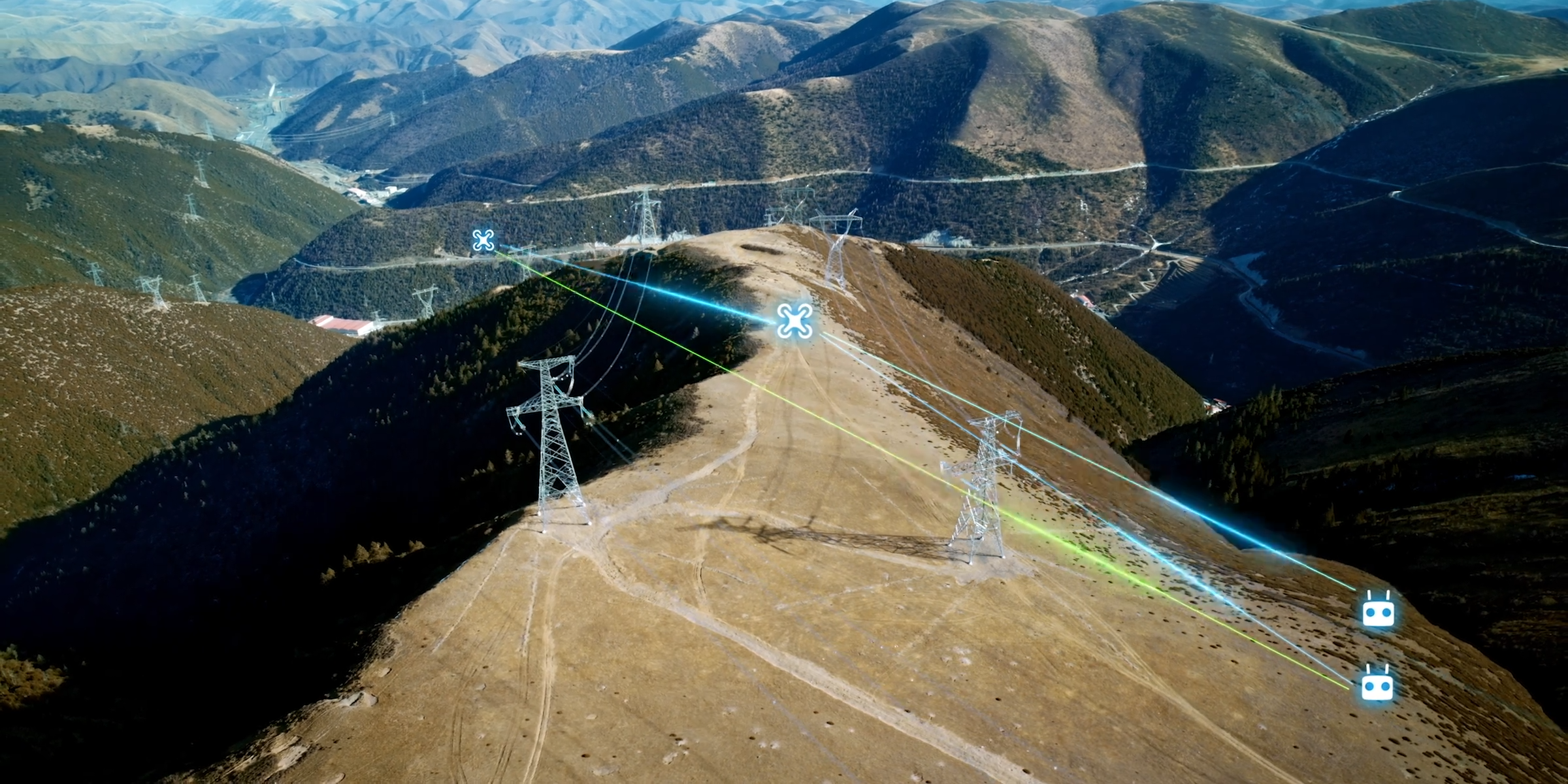

Seamless Airborne Relay for Mountainous Terrains

Matrice 4D Series can operate with the DJI RC Plus 2 Enterprise remote controller for standalone use while featuring an innovative onboard relay function. With this setup, one drone can fly high as a relay, allowing another drone to operate at a greater distance. The relay drone automatically faces the operating drone, [5] ensuring smooth video transmission without a 4G signal or in obstructed conditions. [19] This capability significantly extends the transmission range, making it ideal for SAR tasks and inspections in mountainous areas.

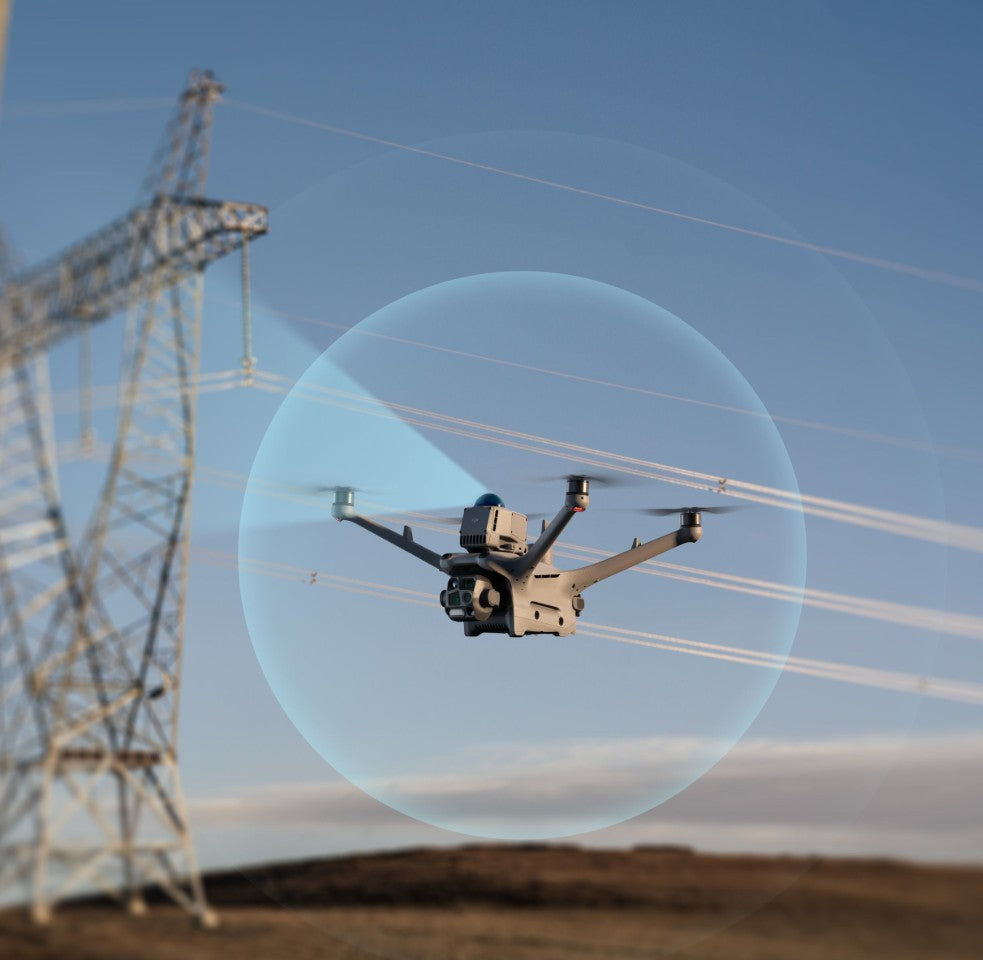

Obstacle Sensing for Safe Operation

The Obstacle Sensing Module [4] for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. [5] Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.[15]

Smart Features for Efficiency

With DJI Pilot 2, Matrice 4D/4TD supports vehicle and vessel detection, laser range finder-based point marking, linear-/area-based surveying, etc.

Obstacle Sensing for Safe Operation

The Obstacle Sensing Module [4] for Matrice 4D/4TD combines rotating LiDAR and millimeter-wave radar technologies for precise 12mm wire-level obstacle avoidance at speeds up to 15 m/s in complex power line crossings, as well as enhanced positioning in low-light conditions. [5] Operational safety are ensured for varying environments of power distribution network and the intricate layouts of substations.[15]

Excels in Low Light

Matrice 4D/4TD features enhanced visual positioning, obstacle avoidance, [6] night scene mode, full-color night vision and medium tele/tele cameras. Matrice 4TD adds NIR light and a thermal camera. Matrice 4D supports precision mapping.

Accessory Upgrades

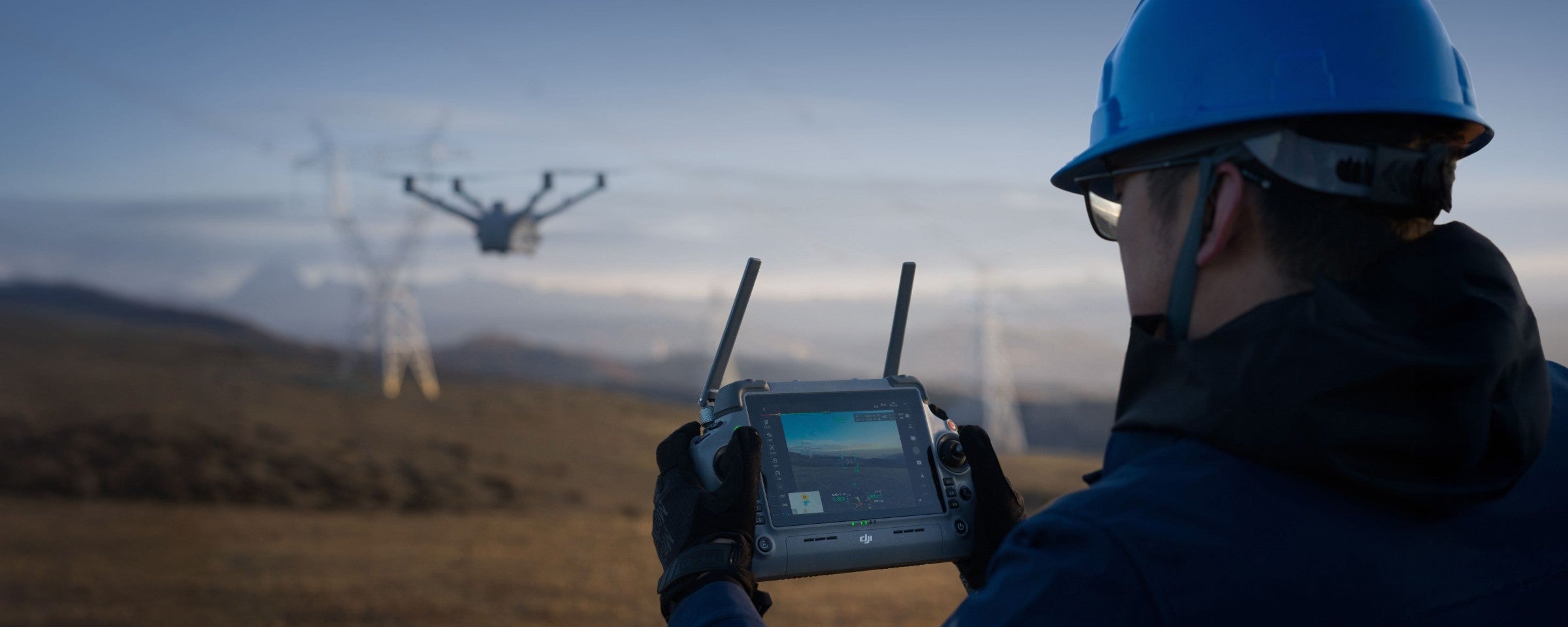

Providing options such as Gimbal-Following Spotlight, Real-time Voice Speaker, D-RTK 3 Relay and DJI RC Plus 2 Enterprise Remote Controller.

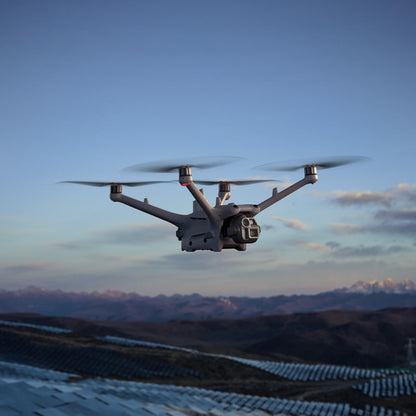

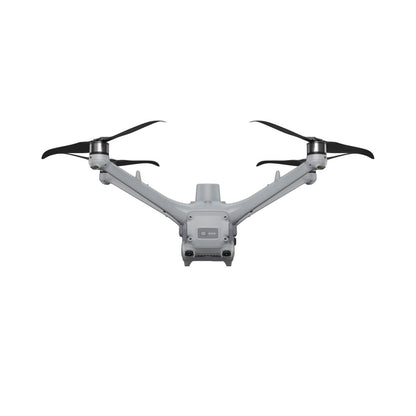

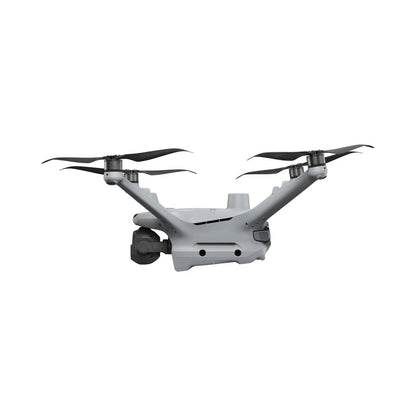

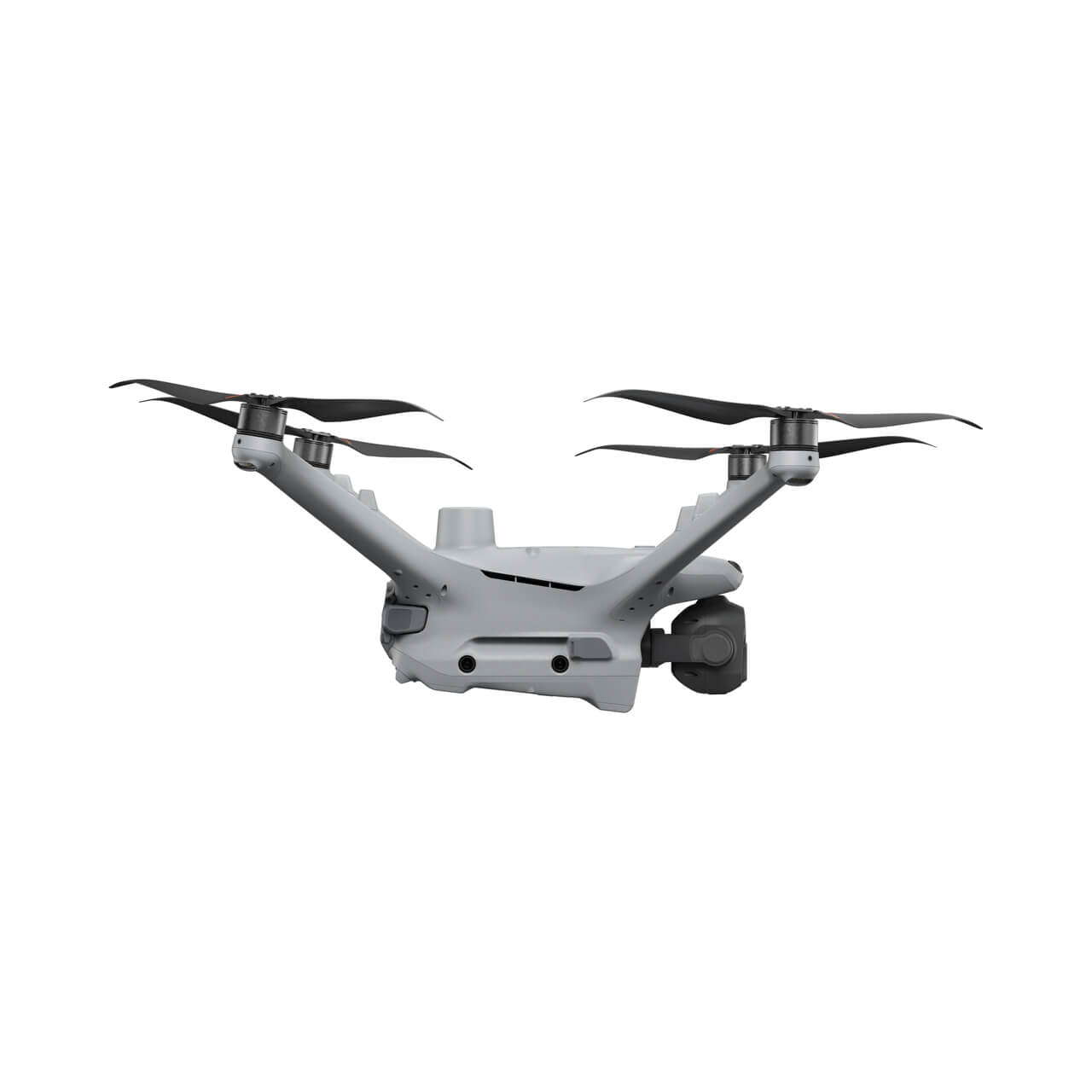

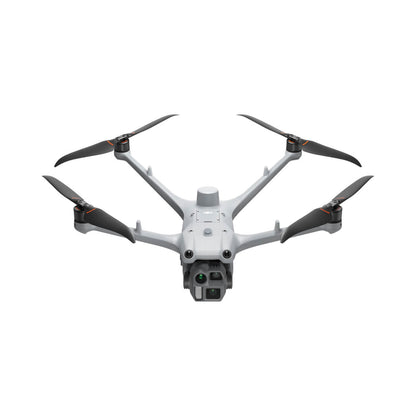

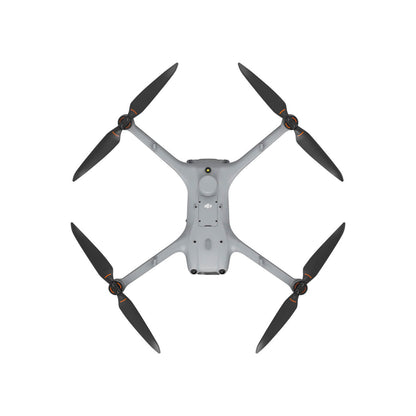

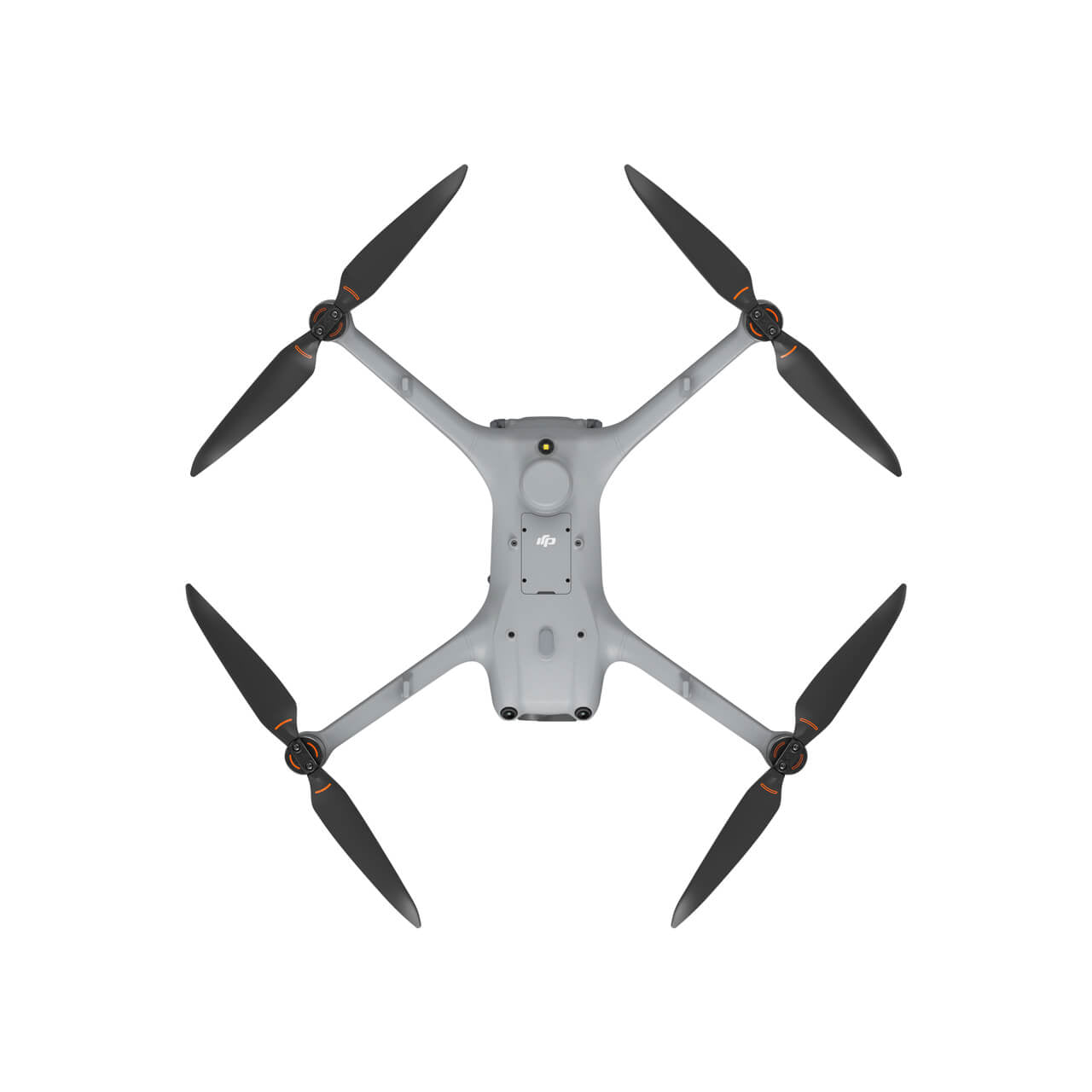

DJI Matrice 4D

DJI Matrice 4D

Wide-Angle Camera

4/3 CMOS
20MP Effective Pixels
f/2.8-f/11
24mm Format Equivalent
Mechanical Shutter

Medium Tele Camera

1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent

Tele Camera

1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent

Laser Range Finder

Measurement Range: 1800 m (1 Hz)
Oblique Incidence Range: 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy: ± (0.2 + 0.0015 × D)

DJI Matrice 4TD

DJI Matrice 4TD

Wide-Angle Camera

1/1.3-inch CMOS
48MP Effective Pixels
f/1.7
24mm Format Equivalent

Medium Tele Camera

1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent

Tele Camera

1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent

Laser Range Finder

Measurement Range: 1800 m (1 Hz)
Oblique Incidence Range: 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy: ± (0.2 + 0.0015 × D)

NIR Auxiliary Light

6° FOV, 100m Illumination Distance

Infrared Thermal Camera

640×512 Resolution
f/1.0
53mm Format Equivalent
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode

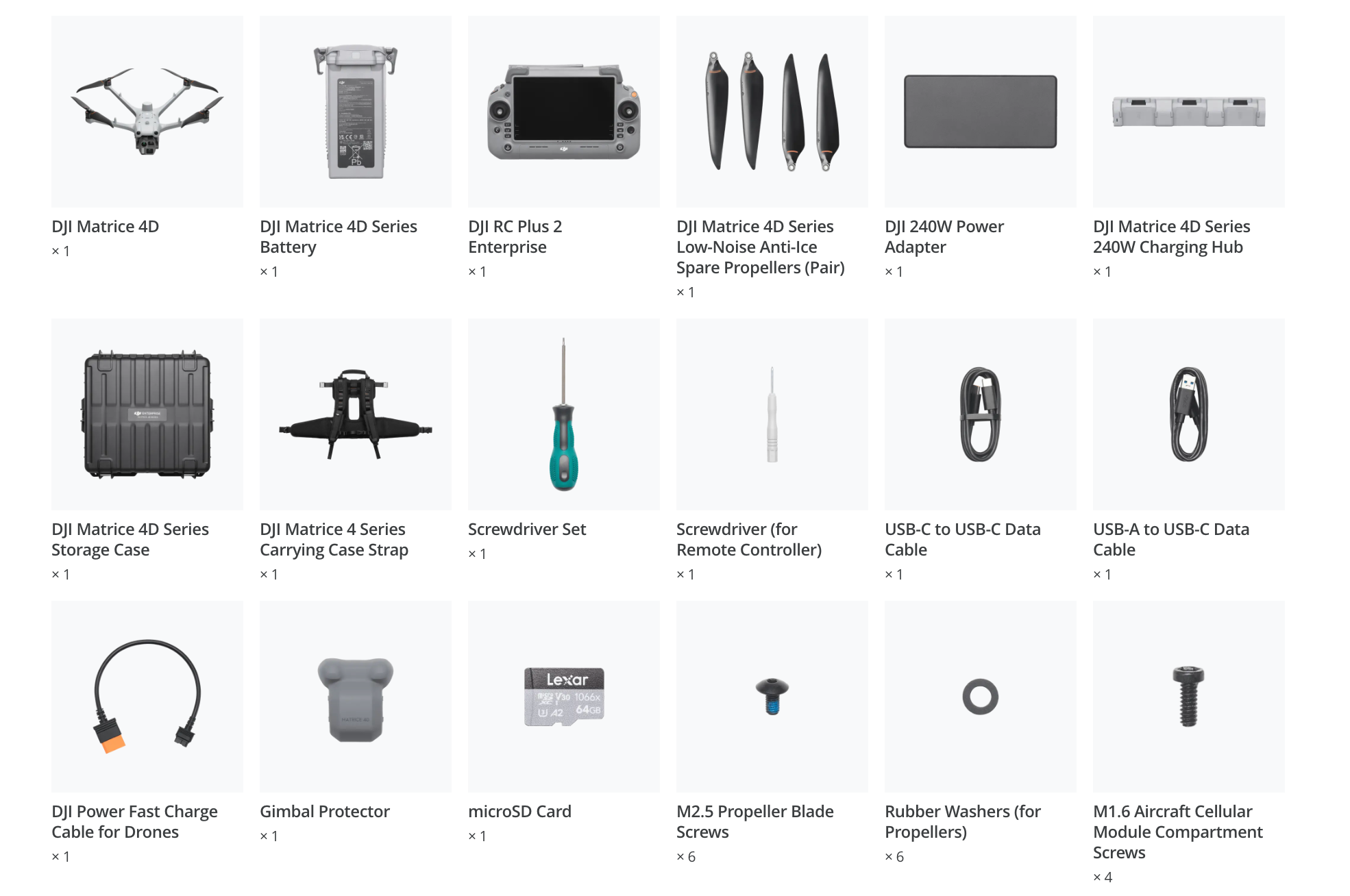

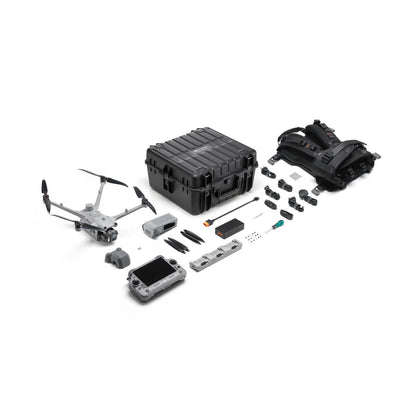

In the Box

DJI Matrice 4D× 1
DJI Matrice 4D Series Battery× 1
DJI RC Plus 2 Enterprise× 1
DJI Matrice 4D Series Low-Noise Anti-Ice Spare Propellers (Pair)× 1
DJI 240W Power Adapter× 1
DJI Matrice 4D Series 240W Charging Hub× 1
DJI Matrice 4D Series Storage Case× 1
DJI Matrice 4 Series Carrying Case Strap× 1
Screwdriver Set× 1
Screwdriver (for Remote Controller)× 1
USB-C to USB-C Data Cable×
USB-A to USB-C Data Cable× 1
DJI Power Fast Charge Cable for Drones× 1
Gimbal Protector× 1
microSD Card× 1
M2.5 Propeller Blade Screws× 6
Rubber Washers (for Propellers)× 6
M1.6 Aircraft Cellular Module Compartment Screws× 4
